Containerized Electrolysis
Modules 1-5 MW

Standardised hydrogen production designed to simplify deployment, reduce site work and faster execution.
Pre-engineered hydrogen production systems integrating process technology, automation and safety functions in a containerised format. Designed to simplify deployment and reduce on-site installation work.
Contact sales
Stack Capacity
1-5 MW
Output Pressure
Up to 30 bar
Hydrogen Purity
99.999%
Stack Lifetime
>80.000 h
Load Range
25–110%

Product overview

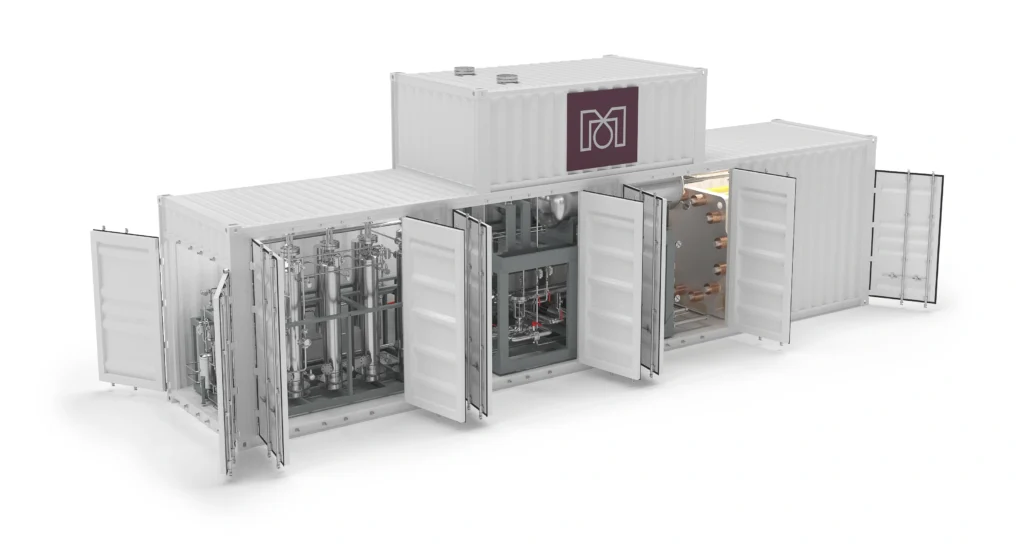

Containerized alkaline electrolysis for industrial-scale hydrogen production

Fully integrated systems without need for additional buildings.
Metacon's containerised electrolysis solutions provide a compact, factory-integrated approach to hydrogen production for pilot projects, demonstration plants and medium-scale industrial applications. Each system combines electrolysis equipment, automation and key auxiliary systems in a standardised format designed for straightforward deployment and operation.

By reducing footprint, site preparation requirements and on-site installation work, containerised solutions offer an efficient alternative to conventional plant construction. Systems are configured to site-specific requirements and can be combined into larger installations through a modular and scalable design.

Benefits

  • Scales from 1 to 20 MW
  • Up to 30 bar output pressure
  • CE-certified, European manufacturing standards
  • Compact footprint
  • Reduced civil works, fast deployment

INSIDE THE LINE

All subsystems integrated for autonomous hydrogen production.
Each containerised system is engineered as an integrated process package that combines hydrogen production technology with the supporting systems required for safe and reliable operation.
Get in touch
electrolyser
[[Electrolyser Stacks]] Pressurized PERIC alkaline technology engineered for industrial-scale hydrogen volumes.
lye-tank
[[Lye Management]] Automated KOH circulation and thermal control system designed to maximize electrolyser stack lifespan.
rectifier-transf
[[Power Conversion]] Integrated transformer and rectifiers converting grid AC to the DC supply the stacks require.
Group 17
[[Process Control]] PLC-based automation with HMI interface and built-in capability for SCADA and DCS integration.
h2-purification-unit
[[Gas Purification]] Optional multi-stage treatment delivering hydrogen purity up to 99.999% for fuel cells and industrial use.
chiller
[[Cooling & Utilities]] Pre-configured cooling circuits and water interfaces engineered for rapid, straightforward site connection.

METACON’S PROJECT SCOPE

One partner from FEED to operation

Hydrogen projects involve multiple disciplines, suppliers, and interfaces. Metacon reduces project risk by supporting the complete project lifecycle.

More information

Support includes

  • FEED participation
  • Engineering
  • Automation & controls
  • Plant integration
  • Equipment supply
  • Site installation support
  • Commissioning
  • Operator training
  • Long-term service agreements

Tech spec

Technical specifications

Key capacity, configuration, technology, and operating parameters for Metacon's containerized alkaline electrolysis production lines.

Parameter

Specification

  • Line capacity

    1–5 MW (scalable from single unit to multi-container plant)

  • Configuration
    • Pressurized alkaline stacks
    • Gas Lye Separation
    • Gas Purification
    • Transformer and recitifier
  • Technology

    Pressurized alkaline water electrolysis

  • Output pressure

    Up to 30 bar before compression

  • Hydrogen purity

    ≥ 99.999% (after purification)

  • Operating temperature

    70–90 °C

Why metacon

Four strong reasons to work with Metacon

From technology selection to long-term operation, Metacon helps reduce project risk, simplify execution, and maximize performance at every stage.

Proven at scale

Electrolysis solutions built on PERIC’s alkaline electrolyser technology, combining more than 60 years of development with experience from over 2,000 systems worldwide.

Lower cost of hydrogen

Combining large-scale alkaline electrolysis, integrated automation and long stack lifetime to support competitive hydrogen production.

One partner for the full lifecycle

One point of responsibility from engineering and integration through commissioning, service and long-term support.

European compliance

CE-certified and delivered in accordance with European regulations, documentation and safety requirements.

Service & support

Maximizing uptime throughout the plant lifecycle

Reliable hydrogen production depends on proactive maintenance and fast support.

Metacon offers tailored service agreements covering preventive maintenance, remote monitoring, spare parts management, training, and technical support.

Included services

  • Preventive maintenance
  • Spare parts programs
  • Operator training
  • Remote diagnostics
  • 24/7 support options
  • Performance optimization
Explore service agreements

TYPICAL APPLICATIONS

Designed for large-scale hydrogen production

applications_003

Industrial Hydrogen Supply

Uppvidinge edit

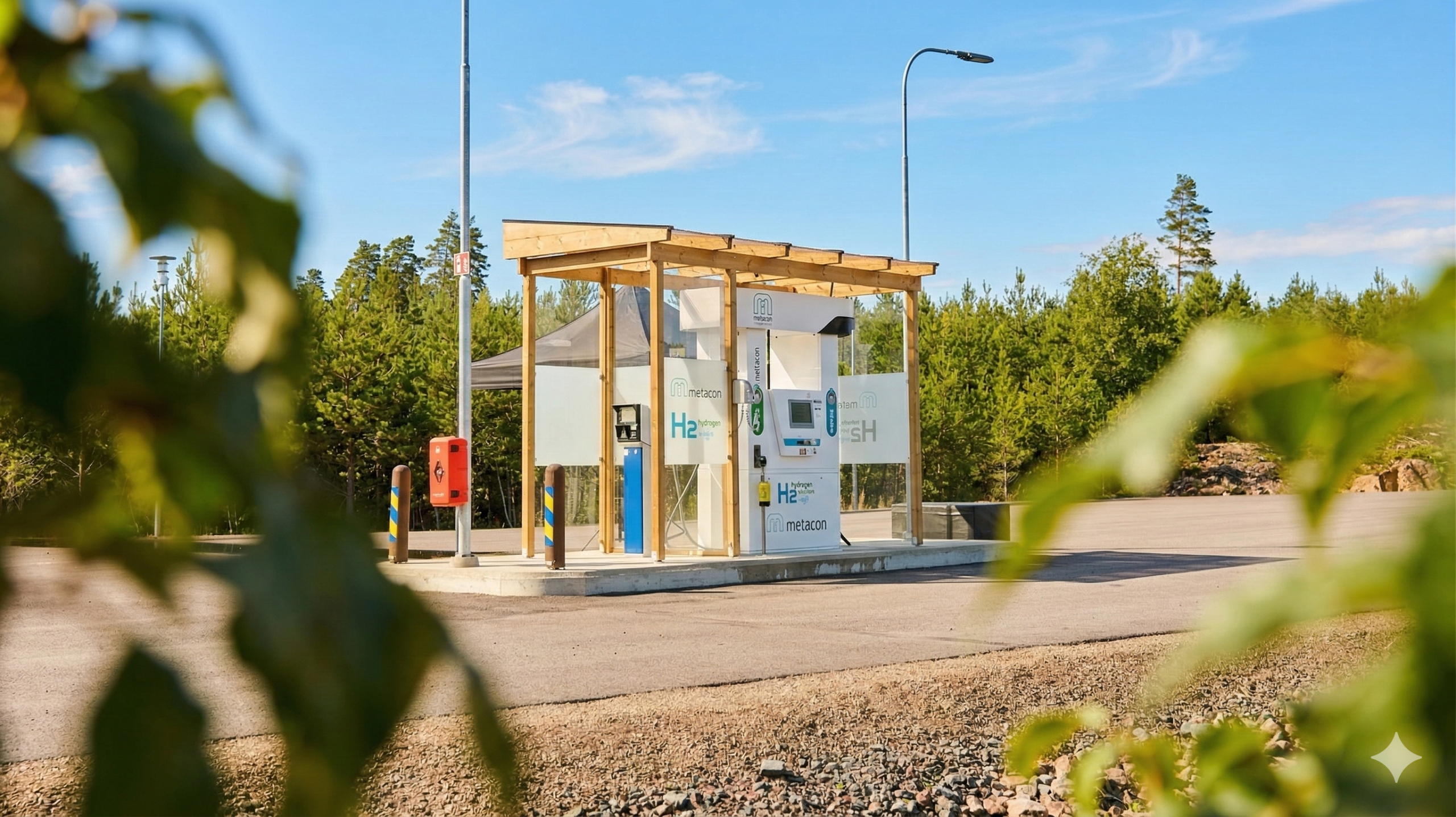

Mobility & Refuelling

electric-power-lines-against-evening-sky

Energy Infrastructure

pexels-maxmishin-10880912

Research & Demonstration

default

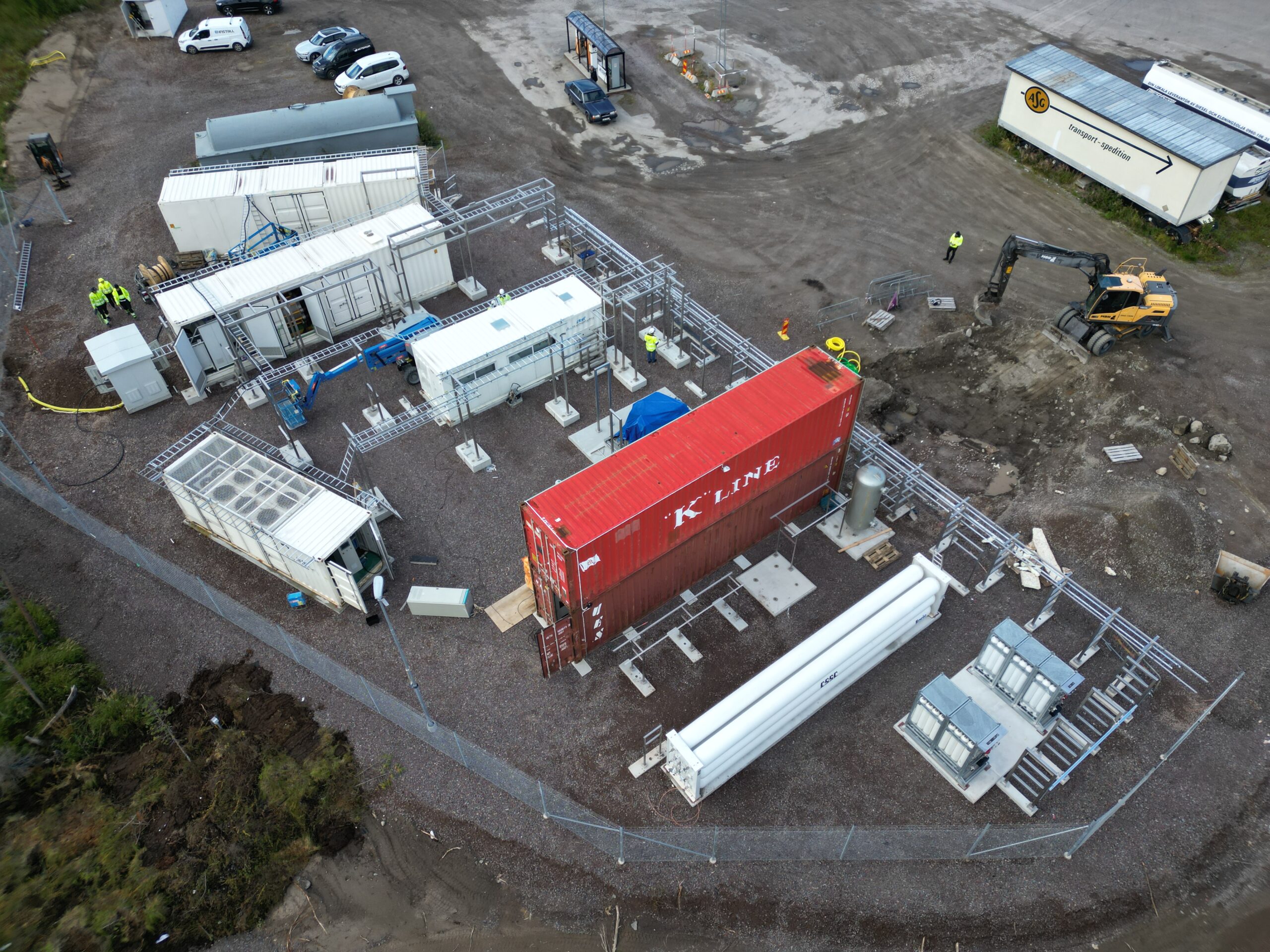

Remote or Distributed Energy

Planning a hydrogen project?

Whether the project requires a compact demonstration unit or a larger industrial installation, Metacon can deliver containerised hydrogen systems designed for efficient deployment and long-term operation.
Contact a specialist
