CHP - combined heat
and power generation

5 kW fuel cell CHP for commercial and off-grid applications
The CHP system combines fuel reforming and PEM fuel cell technology in a compact solution for on-site generation of electricity and heat. Designed for operation on natural gas, LPG or biogas, it provides efficient and low-emission energy supply for buildings, telecom sites and distributed energy applications.
Contact sales
Electrical Output
5 kW
Heat Output
Up to 7 kW
Fuel Options
Multifuel

Product overview

Efficient combined heat and power generation

5 kW electricity and 7 kW of heat in one integrated system.
The CHP system combines fuel processing and PEM fuel cell technology to generate both electricity and useful heat from conventional or renewable gaseous fuels. By utilizing the fuel more efficiently than separate power and heat generation, the system helps reduce energy costs, emissions and dependence on the electrical grid.

Designed for continuous operation, the unit delivers up to 5 kW of electrical power together with up to 7 kW of thermal output. Its compact and flexible configuration allows installation in a wide range of applications, from commercial buildings and multi-family housing to remote facilities and sites seeking increased energy resilience.

The system can operate on natural gas, LPG/propane or biogas and can be deployed either grid-connected or as a stand-alone energy solution. With low emissions, quiet operation and high overall efficiency, it provides a reliable source of energy where both electricity and heat are required.

Benefits

  • Multi-Fuel Operation
  • Combined Heat & Power generation
  • High Efficiency
  • Low Emissions

INSIDE THE H2PS-5 CHP SYSTEM

The CHP system combines fuel reforming and PEM fuel cell technology to generate both electricity and useful heat from natural gas, LPG or biogas. Designed for commercial, off-grid and distributed energy applications, it delivers up to 5 kW of electrical power and up to 7 kW of heating output with low emissions and high efficiency.
Get in touch
[[Fuel Processor]] Patented reforming technology converts natural gas, LPG or biogas into hydrogen for power generation.
[[PEM Fuel Cell Stack]] Low-temperature PEM fuel cell technology converts hydrogen into electricity with high efficiency and low emissions.
[[Thermal Recovery]] Heat from the process is recovered and supplied as usable heating energy.
[[Battery & Energy Management]] Integrated batteries and power electronics optimise energy use and system performance.
[[Power Management]] Compatible with AC and DC power sources and supports both grid-connected and off-grid operation.
[[Control System]] Advanced monitoring and control functions ensure safe, reliable and automated operation.

METACON’S PROJECT SCOPE

One partner from FEED to operation

Hydrogen projects involve multiple disciplines, suppliers, and interfaces. Metacon reduces project risk by supporting the complete project lifecycle.

More information

Support includes

  • FEED participation
  • Engineering
  • Automation & controls
  • Plant integration
  • Equipment supply
  • Site installation support
  • Commissioning
  • Operator training
  • Long-term service agreements

Tech spec

Technical specifications

Parameter

Specification

  • Technology

    Fuel reforming with PEM fuel cell

  • PEM Fuel Cell Stack

    Natural gas, LPG/propane, biogas

  • Electrical Output

    Up to 5 kW

  • Electrical Efficiency

    Over 35%

  • Installation

    Grid-connected or stand-alone

  • Applications

    CHP and distributed energy generation

Why metacon

Four strong reasons to work with Metacon

From technology selection to long-term operation, Metacon helps reduce project risk, simplify execution, and maximize performance at every stage.

Proven at scale

Electrolysis solutions built on PERIC’s alkaline electrolyser technology, combining more than 60 years of development with experience from over 2,000 systems worldwide.

Lower cost of hydrogen

Combining large-scale alkaline electrolysis, integrated automation and long stack lifetime to support competitive hydrogen production.

One partner for the full lifecycle

One point of responsibility from engineering and integration through commissioning, service and long-term support.

European compliance

CE-certified and delivered in accordance with European regulations, documentation and safety requirements.

Service & support

Maximizing uptime throughout the plant lifecycle

Reliable hydrogen production depends on proactive maintenance and fast support.

Metacon offers tailored service agreements covering preventive maintenance, remote monitoring, spare parts management, training, and technical support.

Included services

  • Preventive maintenance
  • Spare parts programs
  • Operator training
  • Remote diagnostics
  • 24/7 support options
  • Performance optimization
Explore service agreements

TYPICAL APPLICATIONS

Designed for large-scale hydrogen production

Commersial building

Commercial buildings

Reliable on-site generation of electricity and heat for offices, retail properties and public facilities.
Multi-family housing

Multi-family housing

Efficient combined heat and power generation for apartment buildings and residential developments.
Offgrid and remote facilities

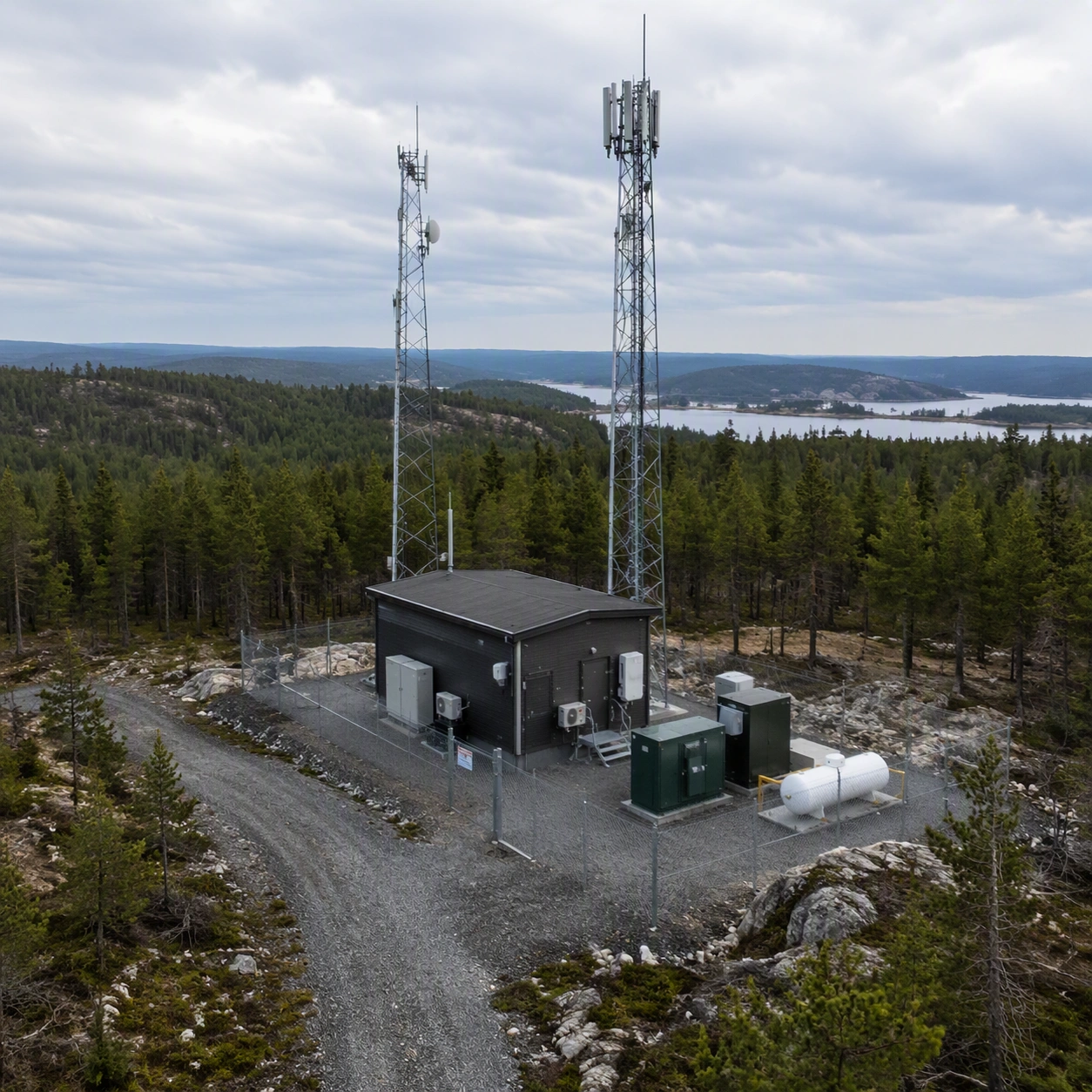

Remote and off-grid facilities

Independent power and heat supply for locations with limited or no access to the electrical grid.
Biogas farm

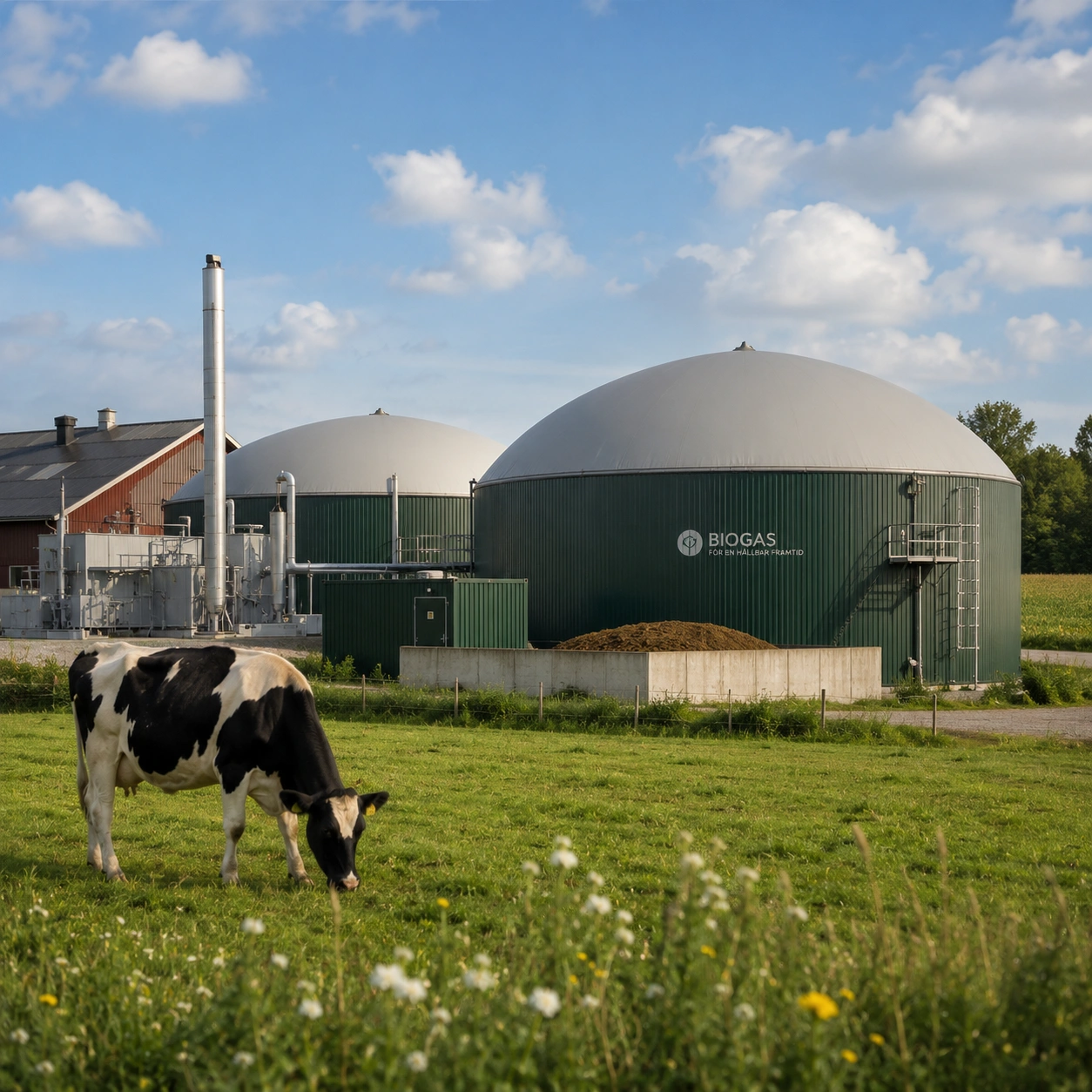

Farms with access to biogas

Convert locally available biogas into useful electricity and heat for agricultural operations.
Hospital

Backup and resilience

Provides dependable power generation to support energy security and business continuity.

Explore partnership opportunities

This CHP technology demonstrates how reforming and fuel cell technologies can be combined into an efficient distributed energy solution. Metacon welcomes dialogue with industrial partners interested in manufacturing, licensing or further development of the technology.
Contact a specialist
